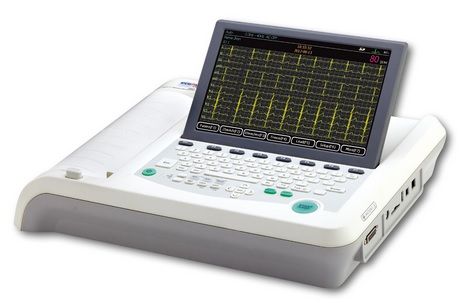

ECG MAC EM-1201 12 CHANNEL
Description
Features:
• Simultaneous 12 leads ECG data acquisition and display
• Simultaneous 12 leads ECG printing with 210mm/216mm thermal paper (Roll or Z-fold)
• 10 inch 800 x 480 TFT color LCD
• Alphanumeric keyboard
• Built-in rechargeable lithium battery, print up to 360 ECG reports (optional)
• Built-in 4GB SD card, save up to 10,000 ECG reports in XML format (optional)
• Pacemaker detection
• Precise ECG auto-interpretation program
• USB SLAVE port can be connected to PC-ECG software (optional)
• Connect to an external USB printer supporting PCL6 language by USB MASTER port to print12 leads ECG report on A4 paper
• Network transmission (optional)
• Software upgrade automatically via SD card
• Software may be sold seperately, please confirm
Specifications:
• Lead - Standard 12 leads
• Input Circuit - Built-in defibrillator protection
• Acquisition Mode - Simultaneous12 leads acquisition
• Measurement Range - ±5mVpp
• Time Constant - =3.2s
• Frequency Response - 0.05Hz~150Hz (-3dB)
• Sensitivity - 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
• Input Impedance - =50MO
• Input Circuit Current - <0.05µA
• Noise Level - <15µVp-p
• Anti Baseline Drift - Automatic
• Patient Current Leakage - <10µA (220V-240V)
• Filter -
EMG Filter:25 Hz/ 30 Hz/ 40Hz
Low Pass Filter:75 Hz/ 100 Hz/ 150Hz
DFT Filter:0.05 Hz/ 0.15 Hz/ 0.25 Hz/ 0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
AC Filter : 50 Hz / 60Hz
• CMRR - 98dB
• Recording Mode -
Automatic: 12CH×1, 6CH×2, 6CH×2+1R, 3CH×4+1R 3CH×4, 3CH×4+3R
Manual: 12CH, 6CH, 3CH, 2CH, 1CH
Rhythm: Any lead selectable
• Recording System - Thermal matrix printing
• Recording Paper -
Roll: 216mm× 30m, 210mm× 30m
Z-fold:210mm× 295mm× 200 sheets
• Paper Speed - 5 mm/s, 6.25 mm/s, 10 mm/s, 25 mm/s, 50 mm/s
• Display - 800×480 pixel TFT LCD
• Interface - Network interface, USB Master/Slave, SD card
• Safety Standard - IEC I/CF
• Sample Rate -
Normal: 1000sps/channel
Pacemaker: 10,000sps/channel
• Pacemaker Detection - =± 2 mV =± 0.1 ms
• Dimension - 435mm×335mm×98mm
• Weight - 4Kg(include battery)
• Power Supply -
AC: 100~240V, 50/60Hz, 70VA~100VA
DC: 14.8V/4400mAh, built-in lithium battery
